Horizontal Optical Splice Closure
Fiber Optic Splice Closure
GJS-H001
Feature:
• For aerial, buried, wall and pipe wall use
• Gasket ring using a special material that can be repeatedly use
• Splice tray easy to use page design
• Fast way to make maintenance easily
• Air valve and earthing cable devices can be installed
• Advanced internal structure design
• Easy to open and reuse
This installation manual for the Fiber Optic Splice Closure ( FOSC), as the guidance of proper installation.
The Scope of application is :aerial, underground, pipeline. The ambient temperature ranges from -40 to 65℃.
|
Cable ports |
Cable Diameter |
Max. Capacity |
Core capacity per tray |
|
|
390×210×120mm |
6 |
φ16×2 φ13×2 φ13×2 |
Bunchy:96 Ribbon:144 |
Bunchy:12-96(cores) Ribbon:72-144(cores) |

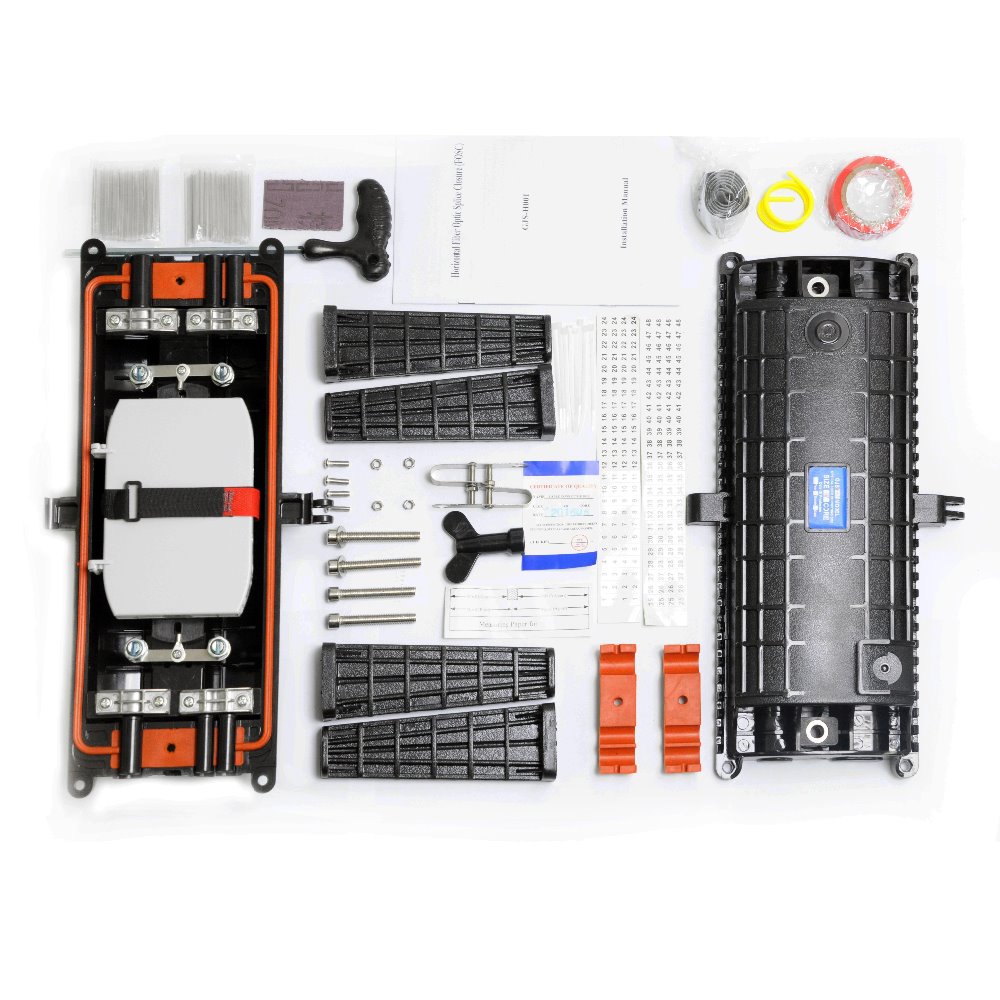

(1).jpg)
Trays:
|
Capacity |
Size: L×W×H |
||
|
FOST016 |
Bunchy |
single:12 cores double:24 cores |
150×100×9mm |
|
Ribbon |
normal:3 pieces max.:6 pieces |
||

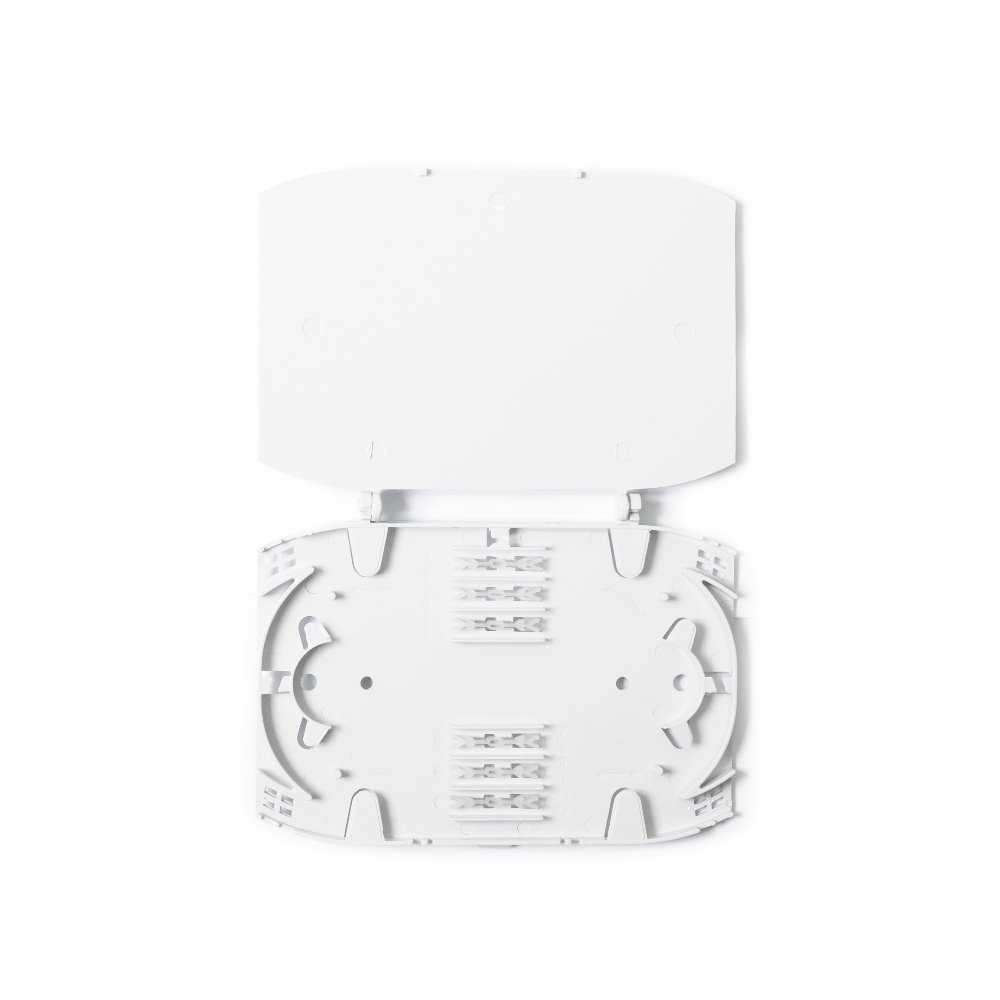

(1).jpg)
|

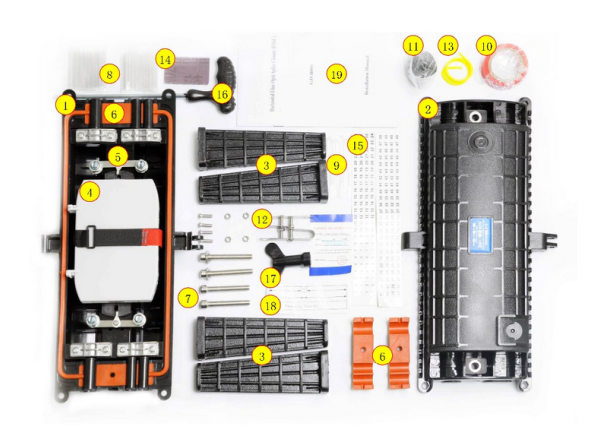

No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
Housing(bottom) |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 285*110(mm) |
|
2 |
Housing(cover) |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 285*110(mm) |
|
3 |
Insert plate |
2 pairs |
Fixing the housing |
175*56*30(mm) |
|
4 |
Fiber optic splice tray(FOST) |
Max. 4 trays (bunchy) or 4 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy: 6,8,12,16,24(cores) Ribbon: 3 (pieces) |
|
5 |
Foundation |
1 set |
Fixing reinforced core of fiber cable and fiber optic splice tray(FOST) |
|
|
6 |
Seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
7 |
fixed bolt |
1 sets |
Fixing the housing |
|
|
Main accessories and special tools |
||||
|
8 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
9 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
10 |
Insulation tape |
1 roll |
Enlarging diameter of fiber cable for easy fixing |
|
|
11 |
Seal tape |
1 roll |
Enlarging diameter of fiber cable which fits in with seal fitting |
Configuration as per specification |
|
12 |
Hanging hook |
1 set |
For aerial use |
|
|
13 |
Earthing wire |
1 piece |
Putting through between earthing device |
|
|
14 |
Abrasive cloth |
1 piece |
Grind the fiber |
|
|
15 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
16 |
M8 Special wrench |
1 piece |
Fixing bolts of housing and insert plate |
|
|
17 |
M10 Special wrench |
tightening nut of reinforced core |
|
|
|
18 |
Measuring paper |
1 piece |
To measure circle,of which its diameter is enlarged with seal tape |
|
|
18 |
Instruction manual |
1 piece |
standard installation |
|
|
Optional accessories |
||||
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
Air valve |
1 set |
After injecting air it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
2 |
Earthing device |
1 set |
Deriving metallic components of fiber cable in the FOSC for earthing connection |
Configuration as per requirement |
|
3 |
1 bag |
Put into FOSC before sealing for desiccating air. |
Configuration as per requirement |
|
|
4 |
Protect tube |
decided by the customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
Package:
|
No. |
specification |
Carton size(cm) |
Capacity |
N.W |
Remarks |
|
1 |
inner box |
40×20×12.5 |
1pcs |
2.1-2.2KG |
Configuration as per weight |
|
2 |
outer box |
66×40.5×42 |
10pcs |
21-22KG |
Configuration as per weight |
Services:
1. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2. All of our goods will pass QUALITY INSPECTIONS before shipment.
3. About 10 years experience in exporting to make your order more smooth.
4. Less than one container loading is accepted.
5. On time delivery,
6. Special dimensions available according to request.
