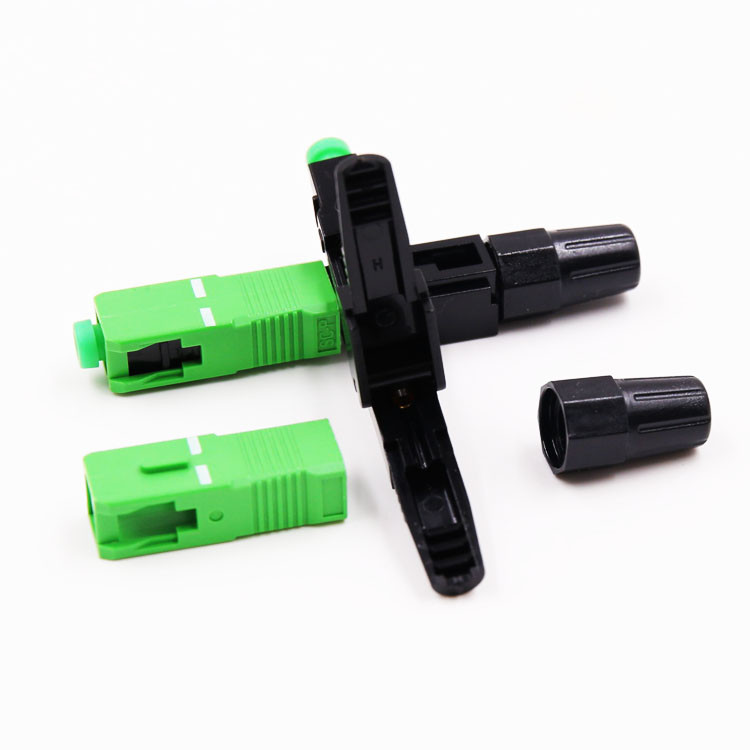

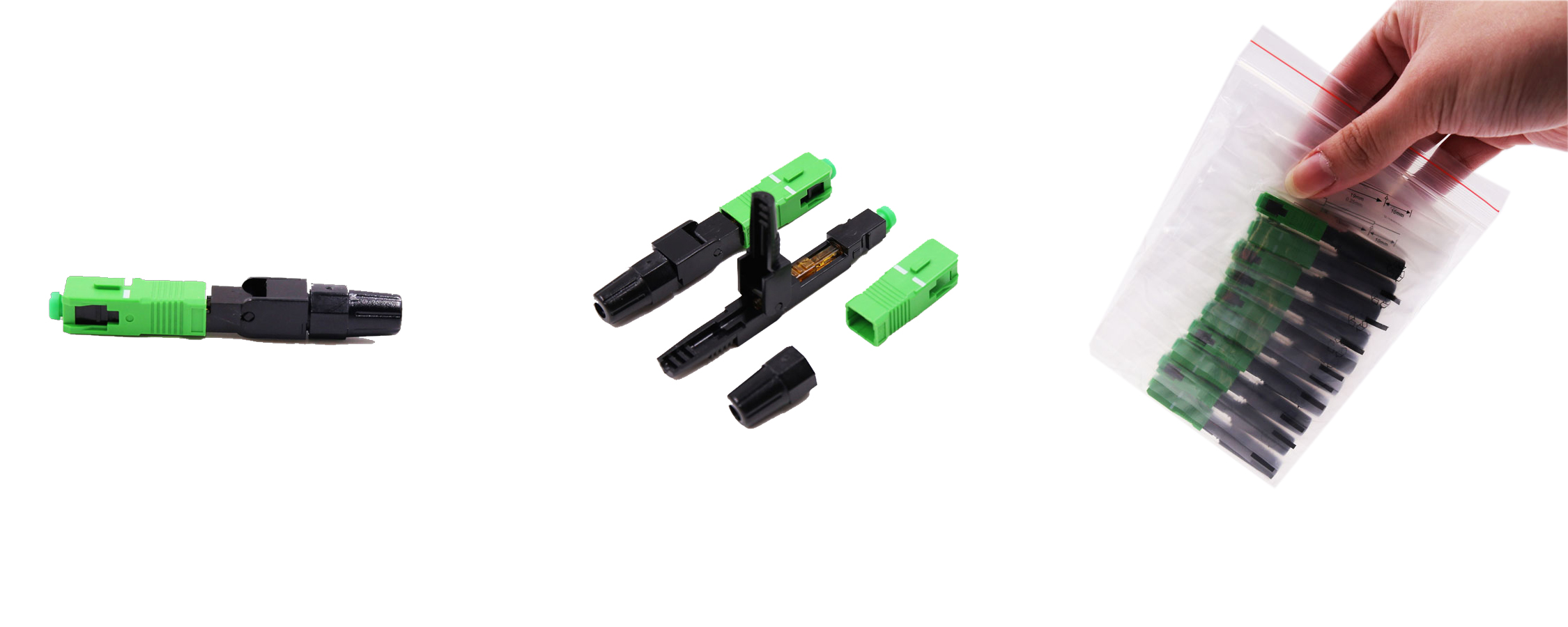

SC/APC FTTH Fast Connector

Description

FTTH fast connectors make fiber terminations quick, easy and reliable.

These fiber optic connectors offer terminations without any hassles and require no epoxy,

no polishing, no splicing, no heating and can achieve similar excellent transmission parameters

as standard polishing and splicing technology.

Our fast connector can greatly reduce the assembly and set up time.

The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

Applications
• Patch panels, Distribution frames
• Maintenance or emergency restoration of fiber networks
• FTTH Outlets
• Connection at the desk for LAN environments
• Fiber Optic Patch Cord & Pigtail
• Telecommunication Devices
• Data Communications Networks
• Optical Fiber LAN and Access Network
• Industry and Military Applications



Features:
• No epoxy and polishing required, no special tools needed when installed.
• Allows up to three re-termination result.
• Easily installed, quick and easy fiber termination in the field.
• Only 30 seconds needed to learn the process of installation and making.
• Fast connecting and repeat, no special tools needed when installed.
• Can be made on-site without splicing connectors.
• Eliminates cable excess length and pigtail splice storage.
• Can be intalled and maked repeatedly thus avoiding loss.



Specifications

Fiber Type	SM/MM
Surface polishing	SC/APC
Color	Blue, Green
insertion loss	≤0.3dB
return loss	≥45dB
Material of shell	ABS
Applications	2.0/3.0 or FTTH patch cord
Fiber Diameter	125um
Tensile Strength	>20N
Lock Strength	0.2dB
Temperature Cycle	0.3dB
Virbration	0.2dB
Temperature	-40℃~+80℃
