PLC Fiber Optic Splitter

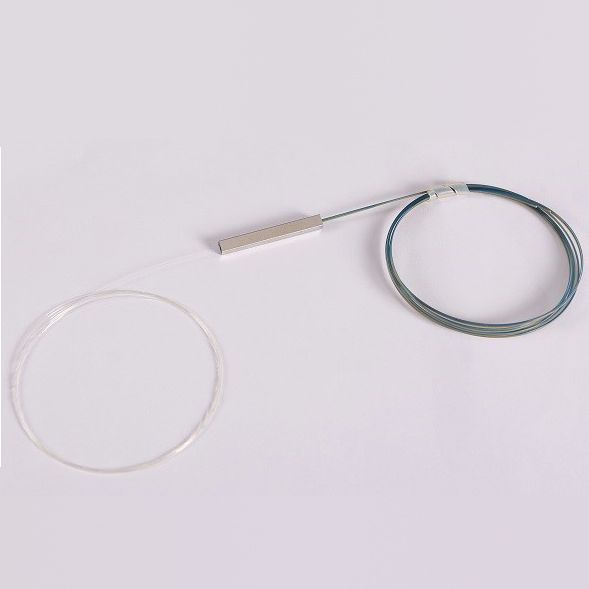

1x16 Mini Steel Tube PLC Splitter
Feature:
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
.jpg)
Application:
1.FTTx Deployments(GPON/BPON/EPON)
2.Cable television (CATV)
3.Local area networks (LAN)
4.Test equipment
5.Passive optical networks(PON)
Specification:
|
1xN PLC Splitter Specification |
|||||||
|
Operating Wavelength |
1260~1650(nm) |
||||||
|
Fiber Type |
G657A1 or as customers' order |
||||||
|
Port Configuration |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
Insertion Loss (dB) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
23.8/24.2 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (-40~85 ) (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
55/50 |
||||||
|
Operating Temperature |
-40~+85 |
||||||
|
Directivity (dB) |
≥ 55 |
||||||
|
Storage Temperature |
-40~+85 |
||||||
Order Information:
PLC Splitter Type-----Input/Output Count-----Input Connector Type-----Input Tube Type------Input Tube Length------Output Connector Type-----Output Tube Type-----Output Tube Length
Q1. Can I have a free sample for this product?
A: Sure, we can provide the free samples for you to check the quality.
Q2. What the lead time for the product?
A:Sample needs 3-5 days, mass production time needs around 3 weeks according to quality.
Q3. How do you ship the goods?
A: We usually ship by SEA, AIR, DHL, and etc.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, normally 1-2 years warranty to our formal products.
Store and shipment:
.jpg)
